Pitco P14 Filtration System: A Step-by-Step Operation Guide

Fryer oil is one of the biggest ongoing costs in any kitchen that serves fried food. Filtering it properly is the easiest way to keep that cost under control. The Pitco P14 filtration system is a mobile filter unit built for exactly this job, and once your team learns the routine, a full filtration cycle becomes quick and repeatable.

This guide walks restaurant, store and kitchen managers through the setup, the filtering process, the oil return and the care of the machine. It is written so you can train new staff from it and keep it next to your fry station.

Note: This article is a general guide. Always follow the manufacturer's instructions for the exact model and serial number you own, because parts and procedures can vary between versions.

What Is the Pitco P14 Filtration System?

The Pitco P14 is a portable, floor-standing fryer filter. It rolls under a fryer drain, collects the used oil in a stainless steel pan, pushes that oil through filter paper with a built-in pump, and sends the cleaned oil back to the fry pot through a hose.

Published product information describes it as a 55-pound capacity unit with a 120V, 1/3 HP motor and pump assembly. It has a single on/off switch (some listings mention a heater position that helps soften solid shortening), a removable filter media assembly for changing paper, and a lift-out filter pan that makes cleaning easier. Because it is mobile, one machine can serve several fryers in the same kitchen, one after another.

Key Components You Will Handle

Knowing the parts by name makes training much easier:

• Filter pan: the stainless steel pan that slides in and out of the unit and holds the oil.
• Support rack: sits at the bottom of the pan and holds the paper up off the pan floor.
• Filter paper and paper retainer: the paper traps crumbs, and the retainer holds it in place.
• Pickup hose and quick-disconnect: carries oil from the pan to the pump.
• Crumb catch frame and basket: catches larger debris before it reaches the paper.
• Return hose and nozzle: sends clean oil back to the fry pot.
• Drain extension tube: helps guide oil from the fryer drain into the pan.
• Clean-out rod: clears food debris that blocks the drain.

Why Fryer Oil Filtration Matters

Every batch of food leaves tiny bits of breading and carbonized crumbs in the oil. Left alone, those particles keep cooking, darken the oil and push bitter flavors into your food. Regular filtration helps in four practical ways.

• Lower oil costs. Cleaner oil lasts longer, so you buy and dispose of it less often.
• Better taste and color. Removing crumbs helps prevent burnt flavors and uneven browning.
• Consistent quality. Customers get the same fries or chicken on a Friday night as they do on a slow Tuesday.
• Safer, easier fryer cleaning. A fryer with clean oil and a clean pot is simpler to maintain.

Stores and restaurants that treat filtering as part of the daily closing routine tend to get far more value from every fill of oil.

Pitco P14 at a Glance

The table below summarizes details found on public product pages. Confirm the figures against your own unit's data plate and manual.

Before You Start: Preparation and Tools

A smooth filtration cycle begins before any oil moves. Gather these items first:

• Heat-resistant gloves, an apron and a face shield or mask
• Fresh, dry filter paper that fits your P14 model
• The drain extension tube and clean-out rod
• A clean, dry work area around the fryer with no spilled oil on the floor
• A second person if your kitchen policy requires one for hot oil work

Check the floor path between the fryer and the filter machine. The unit should roll in and out without catching on mats or equipment legs. If you need spare paper or tools, browse our fryer accessories collection before you run out.

Safety Tips for Working with Hot Oil

Hot oil can cause serious burns, so build safety into every step.

• Wear gloves, an apron and face protection every time. Our protective gear and kitchen aprons collections cover the basics.
• Turn the fryer off before you open the drain valve.
• Open the drain valve slowly and keep your hands and face away from the stream.
• Never move the filter machine while it is full of hot oil unless the manual allows it.
• Keep water away from the machine and from the oil. Water and hot oil do not mix.
• Do not leave the machine running unattended.
• Check the manufacturer's manual for the correct oil temperature range before filtering.

Step-by-Step Pitco P14 Filtration System Operation

The sequence below reflects the process shown in the video, rewritten as a training checklist. Use it together with your manual.

Step 1: Put On Your Protective Equipment

Before touching the machine, put on gloves, an apron and face protection. Make this a habit that never gets skipped, even on a busy shift.

Step 2: Build the Filter Pan

Slide the filter pan out of the unit. Place the support rack at the bottom, then lay a fresh sheet of filter paper over it. Secure the paper with the retainer. Pay attention to the position of the nozzle support rod: it should face the front of the unit.

Use dry paper only. Damp paper restricts flow and can make the motor work harder than it should.

Step 3: Connect the Pickup Hose and Check the Crumb Catch

Attach the pickup hose to the inlet port using the quick-disconnect fitting. Pulling up on the black ring locks the connection in place. Then confirm that the crumb catch frame and basket are seated correctly and are not blocking the return hose nozzle.

Give each connection a quick tug. A loose fitting can leak oil or draw air into the pump.

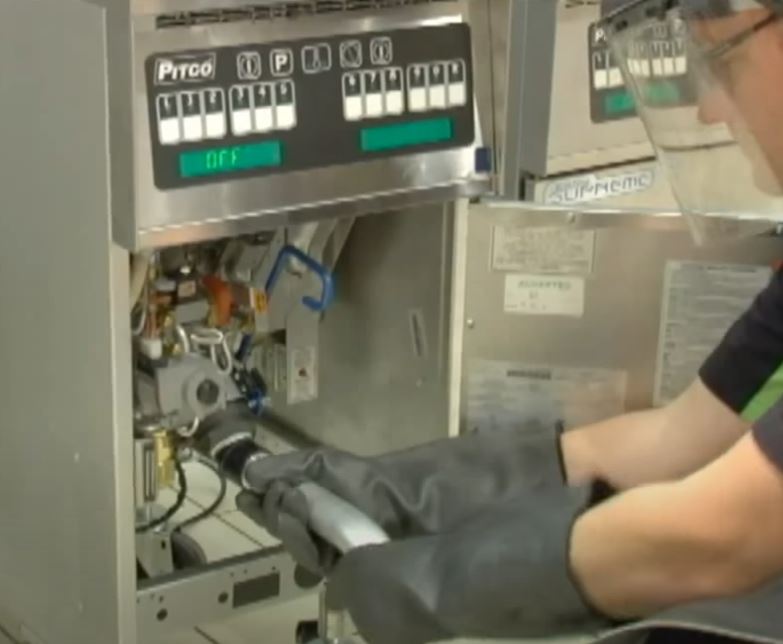

Step 4: Turn Off the Fryer and Drain the Oil

Switch the fryer off. Roll the filter machine into position and attach the drain extension tube. Open the drain valve slowly so the oil flows into the filter pan.

If the oil slows or stops before the pot is empty, a clump of food is probably blocking the drain. Insert the clean-out rod through the drain opening to clear it. Keep your body clear of the stream when the blockage releases. A spare rod such as the Winco SFCR-30 fryer clean-out rod is an inexpensive item to keep at every fry station.

Step 5: Recirculate the Oil to Rinse the Fry Pot

Once the pot is empty, place the return nozzle into the fry pot and switch the pump on. The oil now circulates through the filter and washes crumbs off the interior walls and floor of the pot. Move the nozzle so it reaches all sides, and let the oil rinse away loose debris.

This step is what separates a thorough filtering from a quick drain. Skipping it leaves crumbs behind that will burn when the fryer heats up again.

Step 6: Close the Drain Valve and Return the Oil

When the pot looks clean, close the drain valve fully. Closing it is essential, because open valves let oil run back to the pan instead of filling the pot. Keep the pump running so the filtered oil is pumped back into the fry pot.

Step 7: Clear the Lines

When the pan runs low and air begins to come out of the return nozzle, do not shut the pump off immediately. Let it run roughly 30 additional seconds so the lines clear of oil. Then switch the pump off, set the nozzle in a safe place and let the hoses drain.

Finally, check the oil level in the fryer, top off if needed and restart the fryer following your normal procedure.

Common Mistakes to Avoid

1. Skipping protective gear. Splashes happen fast, even to experienced cooks.
2. Using damp or poor-quality filter paper. Moisture and clogged paper slow the flow and strain the motor.
3. Forgetting to close the drain valve before returning oil. The oil goes back to the pan instead of the fry pot.
4. Blocking the return nozzle with the crumb catch basket. This restricts the return flow.
5. Using water to clean the machine. Water can damage the pump and motor assembly.
6. Ignoring kinked hoses. A restricted hose reduces flow and puts extra load on the pump.
7. Shutting the pump off too early. Leaving oil in the lines makes the next cycle messier.

Daily Use Tips for Busy Kitchens

• Filter on a schedule. Many kitchens filter at least once a day, but follow your oil supplier's and the manufacturer's guidance for your menu and volume.
• Assign one trained person per shift. Fewer hands means fewer mistakes.
• Keep spare paper on hand. Running out mid-shift tempts people to skip filtering.
• Keep a short log. Note the date, the fryer and any issues. Patterns show up quickly.
• Combine filtering with a fresh-oil routine. Top off with new oil after filtering to keep the level steady.
• Compare equipment options. If your fryers or volume change, our commercial fryers collection is a good place to review what fits your line.

Maintenance and Care of the Pitco P14

A well-kept filter machine will last longer and run more quietly. Build these habits into your weekly routine.

Never Wash the Machine with Water

Water can cause expensive damage to the pump and motor. Wipe the exterior with a dry or lightly damp cloth, and follow the manual for cleaning the pan and components. Make sure everything is completely dry before you reassemble.

Replace Filter Paper Regularly

Replace the paper as often as your manual and oil quality require. If the motor sounds like it is struggling, or the circuit breaker trips, check the paper first. Clogged or damp paper is a common cause. Pitco has also listed a paperless filter upgrade kit for the P14 on parts sites, so ask your supplier if that option suits your operation.

Inspect Hoses and Fittings

Look along the hoses for kinks, cracks or buildup, and check the quick-disconnect fitting for wear. Replace worn parts through your equipment supplier. Our guide to OEM parts from Atosa, UNOX, True, Turbo Air and AMPTO explains why genuine parts matter for equipment longevity.

Pair Filtering with Periodic Deep Cleaning

Filtering removes crumbs but does not replace a deep clean. Schedule a boil-out when your manual recommends it, and follow our fryer boil-out guide for Pitco fryers.

Quick Troubleshooting Reference

If a problem persists, stop using the unit and contact a qualified service technician.

Related Products and Guides

Related guides from the Amechef Learning Center

• How to Perform a Fryer Boil Out by Pitco
• Commercial Kitchen Safety: Lighting Your Pitco Fryer
• How to Properly Light an Atosa ATFS Gas Fryer
• ATOSA Fryers: Efficiency and Performance Breakdown
• Stock Up Smart: OEM Parts at Amechef

Related products and collections

• Commercial fryers
• Fryer accessories, baskets and filter paper
• R. F. Hunter ECCO ONEP mobile fryer filter
• R. F. Hunter HF 80P mobile fryer filter
• Winco SFCR-30 fryer clean-out rod
• Protective gear for the kitchen

Frequently Asked Questions

How often should I filter my fryer oil with the Pitco P14?

Many kitchens filter daily, and busy locations may filter more often. The right schedule depends on what you fry and how much. Follow the manufacturer's and your oil supplier's recommendations.

Can I use the Pitco P14 on more than one fryer?

Yes, that is the purpose of a mobile filter. One retailer lists it as compatible with 7, 12 (floor) and 14 size fryers. Confirm compatibility for your fryer model before you buy or use it.

Why does the motor labor or the breaker trip during filtering?

The most common cause is clogged or damp filter paper. Replace it with fresh, dry paper and check the hoses for kinks. If it keeps happening, call a technician.

Can I clean the Pitco P14 with water?

No. Water can damage the pump and motor. Wipe the unit with a dry or lightly damp cloth and keep liquids out of the pump area.

Why should I let the pump run after air comes out of the nozzle?

Running for roughly 30 more seconds clears oil from the lines, which keeps the hoses cleaner and makes the next cycle easier.

What do I do if the fryer drain is clogged?

Insert the clean-out rod through the drain opening and break up the blockage. Keep your hands and face clear of the oil stream, and use a rod made for the job.

Does filtering replace changing the oil?

No. Filtering removes particles, but oil still breaks down chemically over time. Replace it when it becomes dark, foams, smells off or fails your quality checks.

Final Thoughts

The Pitco P14 filtration system gives your kitchen a fast, repeatable way to protect your oil investment and your food quality. Prepare the pan with dry paper, connect the hoses correctly, drain carefully, rinse the pot with recirculating oil, return the oil with the drain valve closed and clear the lines at the end. Pair this routine with regular hose checks, fresh paper and periodic deep cleaning, and your fryers will deliver consistent results shift after shift.
